Technical data (manufacturer information, German terms)
| Bohrung d1 | B 25 |
|---|
| Bohrung d2 | B 18 |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Kennziffer | 2 - mit Edelstahl-Zylinderschraube ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b Laschenbreite | 40 |
|---|
| d3 | 50 |
|---|
| k | 42,5 |
|---|
| l1 | 92 |
|---|
| l2 | 52 |
|---|
| m | 72 |
|---|
| t | 10 |
|---|
| z Schraubstelle | M8-25 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z l3 | 63 | 78 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,172 kg |
|---|

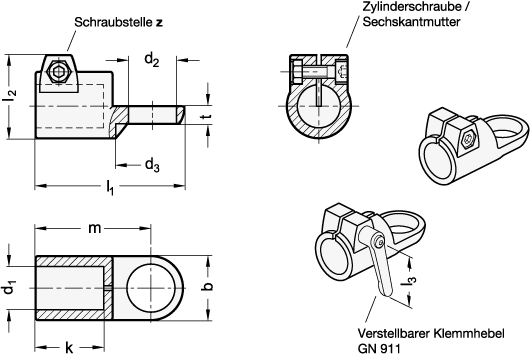

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 276.4 |
|---|
| Order designation | GN 276.4-B25-B18-2-SW |
|---|
| EAN | 4045525750845 |
|---|
| Manufacturer designation (German) | Sensorhalter, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 27279202 |
|---|
