Technical data (manufacturer information, German terms)
| Bohrung d1 | B 45 |
|---|
| Form | AV - mit Außenverzahnung |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Kennziffer | 2 - mit Edelstahl-Zylinderschraube ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b Laschenbreite | 65 |
|---|
| d2 | 10,5 |
|---|
| k | 65 |
|---|
| l1 | 148 |
|---|
| l2 | 65 |
|---|
| m | 70 |
|---|
| s | 17 |
|---|
| t | 32,5 |
|---|
| z Schraubstelle | M10-50 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z l3 | 78 | 92 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,640 kg |
|---|

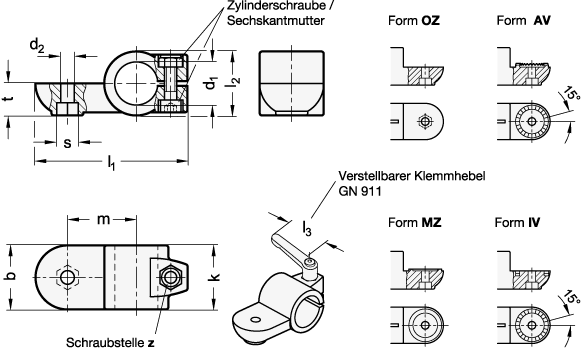

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 278 |
|---|
| Order designation | GN 278-B45-AV-2-BL |
|---|
| EAN | 4045525686984 |
|---|
| Manufacturer designation (German) | Laschen-Klemmverbinder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
