Technical data (manufacturer information, German terms)
| Bohrung d1 | B 20 |
|---|
| Kennziffer | 2 - mit 2 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 7 |
|---|
| k Klemmlänge | 58 |
|---|
| l1 | 69 |
|---|
| l2 | 46 |
|---|
| l3 | 96 |
|---|
| l4 | 23 |
|---|
| t | 7 |
|---|
| x1 | 75 |
|---|
| x2 | 60 |
|---|
| y1 | 72 |
|---|
| y2 | 35 |
|---|
| y3 | 30 |
|---|
| z Schraubstellen | M8-35 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z l5 | 63 | 78 |
|---|
| d1 / s | B - Bohrung |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,297 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 166 |
|---|
| Order designation | GN 166-B20-2-BL |
|---|
| EAN | 4045525629950 |
|---|

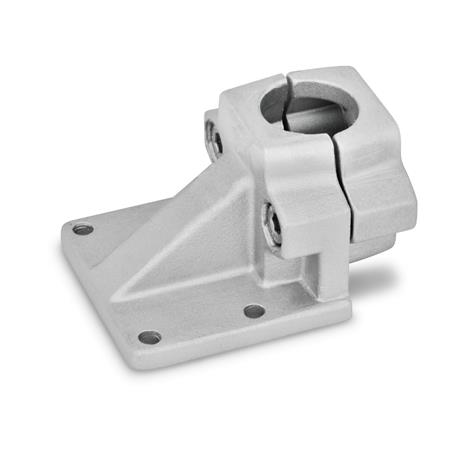

| Manufacturer designation (German) | Fuß-Klemmverbinder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
