Technical data (manufacturer information, German terms)
| Bohrung d1 | B 16 |
|---|
| Oberfläche | ELS - eloxiert, schwarz |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b1 | 20 |
|---|
| b2 | 41 |
|---|
| d2 | 45 |
|---|
| d3 Klemmgewinde | M 6 |
|---|
| d4 für Schraube | M 6 |
|---|
| l1 | 31 |
|---|
| l2 | 10 |
|---|
| l3 | 10 |
|---|
| l4 | 4 |
|---|
| m | 32 |
|---|
| Klemmhebelsets für d3 | 511-M6-20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,062 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 473 |
|---|
| Order designation | GN 473-B16-ELS |
|---|
| EAN | 4045525639591 |
|---|

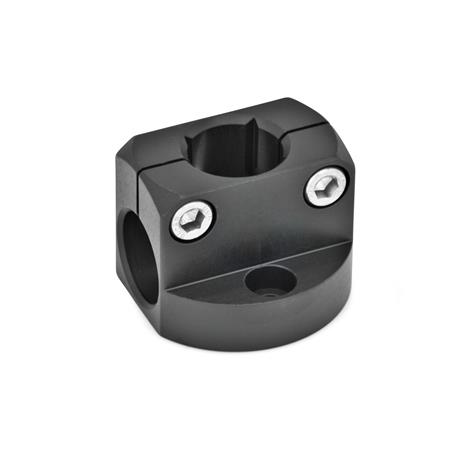

| Manufacturer designation (German) | Fuß-Klemmhalter, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
