Technical data (manufacturer information, German terms)
| Breite k | 30 |
|---|
| Oberfläche | ELS - eloxiert, schwarz |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b | 44 |
|---|
| Bohrung d1 | 50 |
|---|
| d2 für Schraube | M 6 |
|---|
| d3 Gelenkbohrung | 6,5 |
|---|
| d4 | 10,5 |
|---|
| l1 | 44,5 |
|---|
| l2 | 29,5 |
|---|
| l3 | 12,5 |
|---|
| l4 | 6,5 |
|---|
| l5 | 15 |
|---|
| m | 36 |
|---|
| Laschengelenkset für d3 Form K | 511.1-M6-30-K |
|---|
| Laschengelenkset für d3 Form S | 511.1-M6-30-S |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,092 kg |
|---|

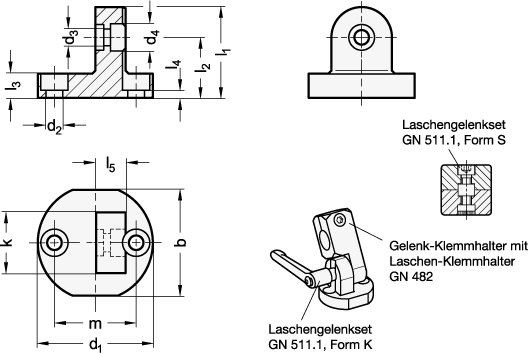

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 485 |
|---|
| Order designation | GN 485-30-ELS |
|---|
| EAN | 4045525097568 |
|---|
| Manufacturer designation (German) | Fußlaschen-Klemmhalter |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
