Technical data (manufacturer information, German terms)
| Bohrung d1 | B 16 |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Kennziffer | 2 - mit Edelstahl-Zylinderschraube ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 5,5 |
|---|
| k Klemmlänge | 40 |
|---|
| l1 | 34,5 |
|---|
| l2 | 25 |
|---|
| t | 7 |
|---|
| x1 | 50 |
|---|
| x2 | 38 |
|---|
| y | 30 |
|---|
| z Schraubstelle | M6-20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,060 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 162.3 |
|---|
| Order designation | GN 162.3-B16-2-BL |
|---|
| EAN | 4045525800168 |
|---|

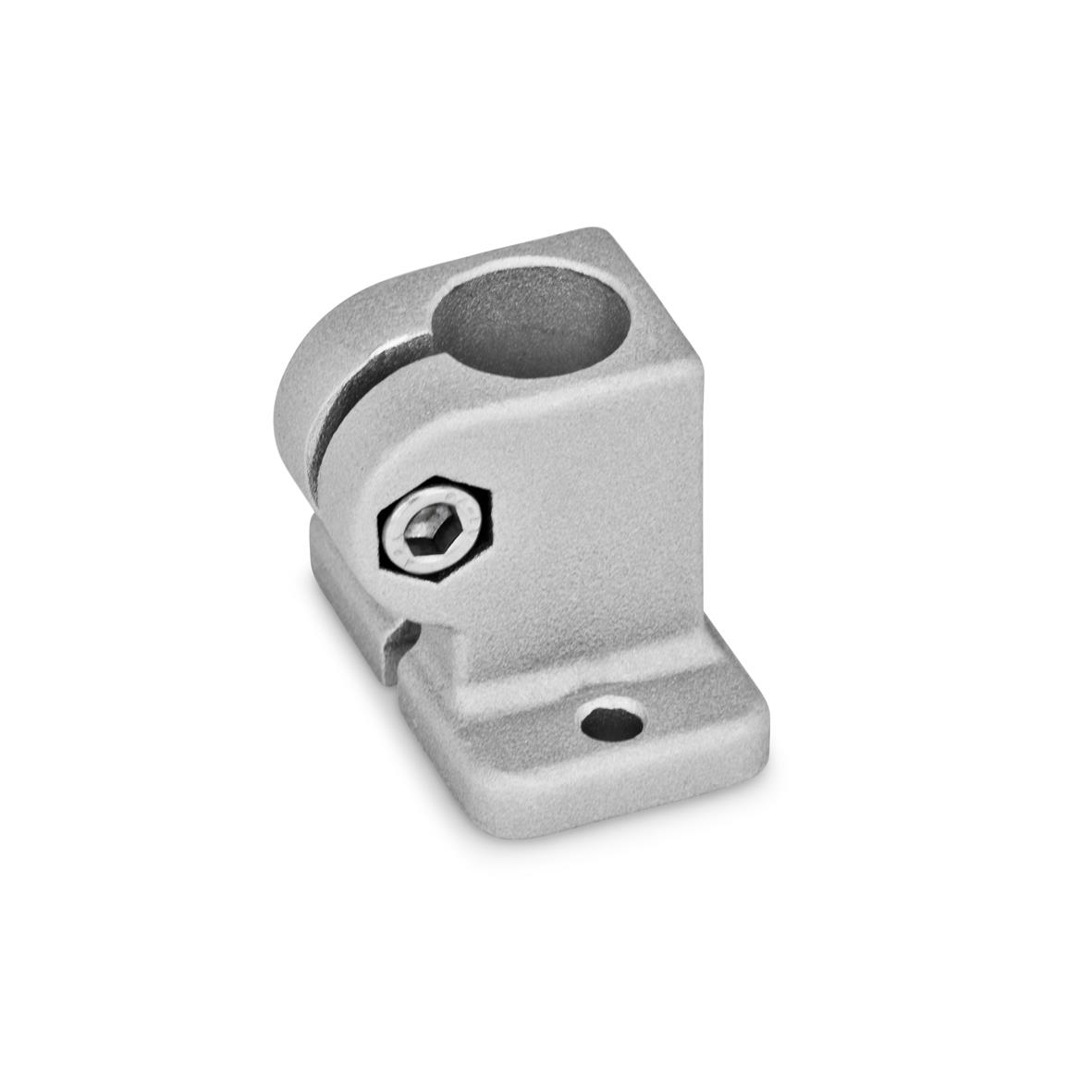

| Manufacturer designation (German) | Fuß-Klemmverbinder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
