Technical data (manufacturer information, German terms)
| sw | 13 |
|---|
| Farbe | SW - schwarz, RAL 9005, matt |
|---|
| Werkstoff | PE - Kunststoff, Polyethylen |
|---|
| d0 für DIN Muttern oder Schrauben | M 8 |
|---|
| d1 | 16,3 |
|---|
| d2 | 12,8 |
|---|
| h1 | 15 |
|---|
| h2 | 8,5 |
|---|
| h3 | 14 |
|---|
| t ≈ max. | 12 |
|---|
| RoHS | Ja |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 934.1 |
|---|
| Order designation | GN 934.1-13-SW |
|---|
| EAN | 4045525537330 |
|---|

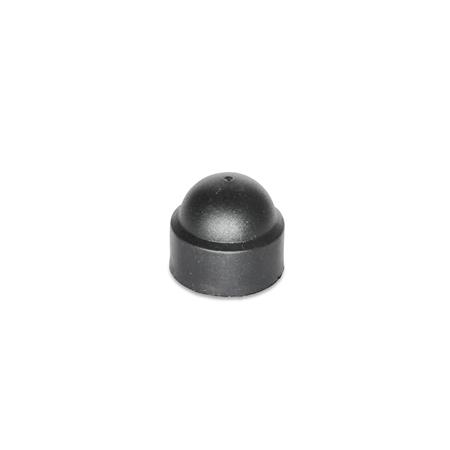

| Manufacturer designation (German) | Abdeckkappen für Sechskantmuttern / -schrauben |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39235090 |
|---|
| eCl@ss 5.1.4 | 23119202 |
|---|
