Technical data (manufacturer information, German terms)
| Bohrung d1 | B 8 |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Kennziffer | 2 - mit 2 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 6,2 |
|---|
| k Klemmlänge | 17 |
|---|
| l1 | 52 |
|---|
| l2 | 38 |
|---|
| l3 | 3,5 |
|---|
| m1 | 36 |
|---|
| m2 | 10,5 |
|---|
| s2 | 10 |
|---|
| z Schraubstellen | M6-30 |
|---|
| d1 / s1 | B - Bohrung |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,050 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 231 |
|---|
| Order designation | GN 231-B8-2-BL |
|---|
| EAN | 4045525932845 |
|---|

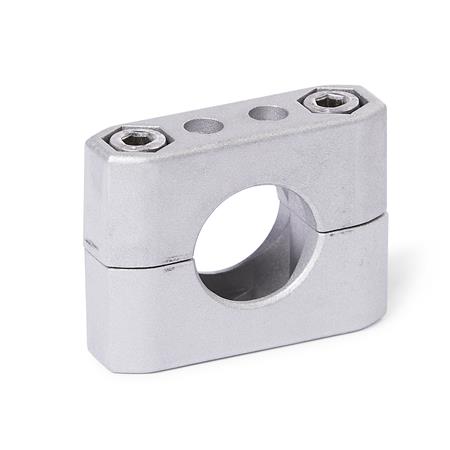

| Manufacturer designation (German) | Rohrschellen, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
