Technical data (manufacturer information, German terms)
| Höhe h1 | 43 |
|---|
| Länge der Läuferleiste l3 | 210 |
|---|
| Länge der Schiene l1 | 1010 |
|---|
| Werkstoff | VS - Vergütungsstahl |
|---|
| Länge l11 | 450 - 194 |
|---|
| l12 | 690 -434 |
|---|
| l13 | 1010 - 754 |
|---|
| b1 | 21 |
|---|
| b2 | 22 |
|---|
| d1 | M 8 |
|---|
| d2 | 8,5 |
|---|
| l4 max. | 23 |
|---|
| m1 | 25 |
|---|
| m2 | 80 |
|---|
| s | 4,5 |
|---|
| t | 13,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 3,816 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2402 |
|---|
| Order designation | GN 2402-43-210-1010 |
|---|
| EAN | 4045525957756 |
|---|

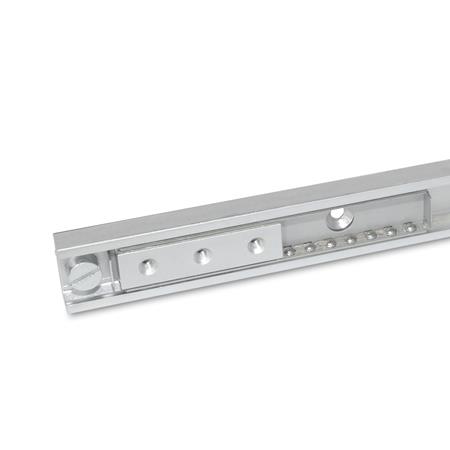

| Manufacturer designation (German) | Linearkugellager |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23300306 |
|---|
