Technical data (manufacturer information, German terms)
| Breite b | 120 |
|---|
| l1 - l2 | 235-75 |
|---|
| Kennziffer | 1 - ohne Klemmhebel |
|---|
| Form | HR - mit Handrad und digitalem Stellungsanzeiger GN 954, Form AR |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d1 | M10 x 1 |
|---|
| d2 | M 5 |
|---|
| d4 | 100 |
|---|
| h1 | 26,3 |
|---|
| h2 | 45 |
|---|
| h3 | 46 |
|---|
| h4 | 13,8 |
|---|
| h5 | 10 |
|---|
| h6 | 57 |
|---|
| h7 | 45 |
|---|
| h8 | 5 |
|---|
| l3 | 160 |
|---|
| l4 | 10 |
|---|
| l5 | 18 |
|---|
| l7 | 46 |
|---|
| l10 | 33 |
|---|
| l11 | 81 |
|---|
| s | 80 |
|---|
| t | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 3,626 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 900 |
|---|
| Order designation | GN 900-120-235-75-HR-1 |
|---|
| EAN | 4045525533448 |
|---|

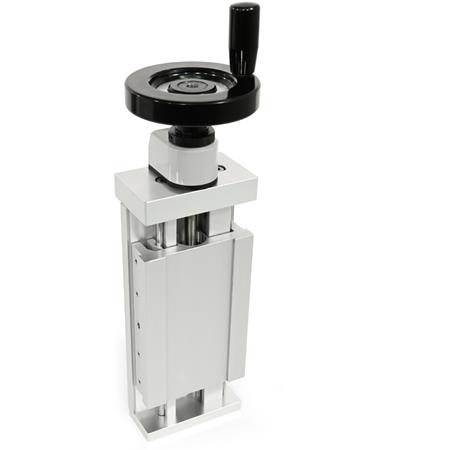

| Manufacturer designation (German) | Verstellschlitten, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84798997 |
|---|
| eCl@ss 5.1.4 | 23301690 |
|---|
