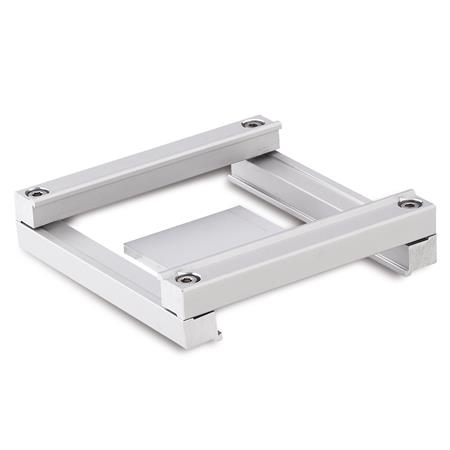

Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium – Ganter GN 900.2-30-41
Dimensional drawing Ganter GN 900.2-30-41
Preview: Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium – Ganter GN 900.2-30-41
Preview: Dimensional drawing Ganter GN 900.2-30-41
Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium
Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium – Ganter GN 900.2-30-41
Dimensional drawing Ganter GN 900.2-30-41
Mobile Preview: Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium – Ganter GN 900.2-30-41
Mobile Preview: Dimensional drawing Ganter GN 900.2-30-41

Verbindungssätze X-Y für Verstellschlitten GN 900.2, Aluminium

Product No.:
900.2-30-41
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Breite b30
    Länge l141
    WerkstoffAL - Aluminium
    d für Zylinderschrauben DIN 912M 2,5
    h18,4
    h24,2
    l235,4
    l341
    l435,4
    l56,5
    RoHSJa
    Gewicht0,012 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 900.2
    Order designationGN 900.2-30-41
    EAN4045525511798
    Manufacturer designation (German)Verbindungssätze X-Y, Aluminium
    Order unitPiece
    Customs tariff number84798997
    eCl@ss 5.1.423309211
