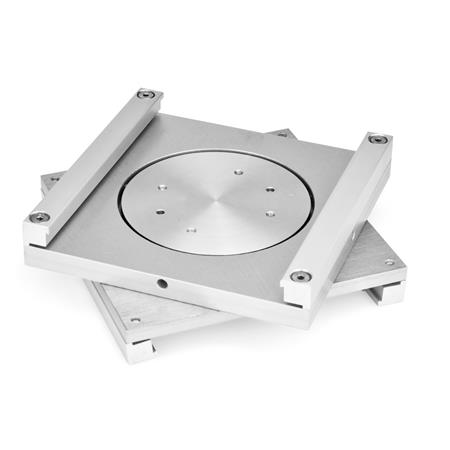

Drehplatten GN 900.5, Aluminium – Ganter GN 900.5-120-145
Dimensional drawing Ganter GN 900.5-120-145
Preview: Drehplatten GN 900.5, Aluminium – Ganter GN 900.5-120-145
Preview: Dimensional drawing Ganter GN 900.5-120-145
Drehplatten GN 900.5, Aluminium
Drehplatten GN 900.5, Aluminium – Ganter GN 900.5-120-145
Dimensional drawing Ganter GN 900.5-120-145
Mobile Preview: Drehplatten GN 900.5, Aluminium – Ganter GN 900.5-120-145
Mobile Preview: Dimensional drawing Ganter GN 900.5-120-145

Drehplatten GN 900.5, Aluminium

Product No.:
900.5-120-145
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Breite b120
    Länge l1145
    WerkstoffAL - Aluminium
    d Zylinderschrauben DIN 912M 5
    h147,6
    h220
    h313,8
    l2131,8
    s12
    RoHSJa
    Gewicht1,398 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 900.5
    Order designationGN 900.5-120-145
    EAN4045525513846
    Manufacturer designation (German)Drehplatten, Aluminium
    Order unitPiece
    Customs tariff number84798997
    eCl@ss 5.1.423309211
