Technical data (manufacturer information, German terms)
| Werkstoff | AM - Aluminium |
|---|
| d1 Bohrung (Form UA / UB) | 8 |
|---|
| h1 (Form UA) | 30 |
|---|
| Form | UA - mit Aufnahmenut, Montage von oben |
|---|
| b | 12 |
|---|
| d2 | 5,5 |
|---|
| h2 | 8 |
|---|
| h4 | 2,6 |
|---|
| Länge l | 40 |
|---|
| m | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,041 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 828 |
|---|
| Order designation | GN 828-8-UA-30-AM |
|---|
| EAN | 4045525575288 |
|---|

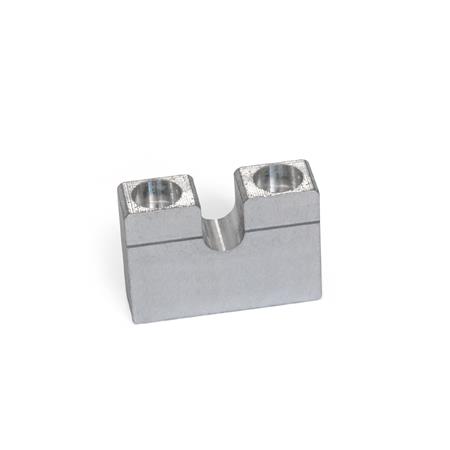

| Manufacturer designation (German) | Lagerböcke, für Stellschrauben GN 827, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 23110890 |
|---|
