Technical data (manufacturer information, German terms)
| Durchmesser d1 | 26 |
|---|
| Bohrung d2 | B 6 |
|---|
| Form | KK - konkav |
|---|
| Kennziffer | 1 - mit Bohrung |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 Bohrung Form ZL | B 6 |
|---|
| Durchmesser | B 6 |
|---|
| d4 Form ZL | 9,5 |
|---|
| d5 | 23,2 |
|---|
| d6 | 23 |
|---|
| d7 | 33 |
|---|
| d8 | 5 |
|---|
| b | 7 |
|---|
| r1 | 5 |
|---|
| r2 | 2,5 |
|---|
| r3 | 0,6 |
|---|
| Belastbarkeit radial in N bei max. 300 U/min. Form ZL | 196 |
|---|
| Form KV | 196 |
|---|
| Form KK Form KF Form KR | 156 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,007 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 753 |
|---|
| Order designation | GN 753-26-B6-KK-1 |
|---|
| EAN | 4045525796263 |
|---|

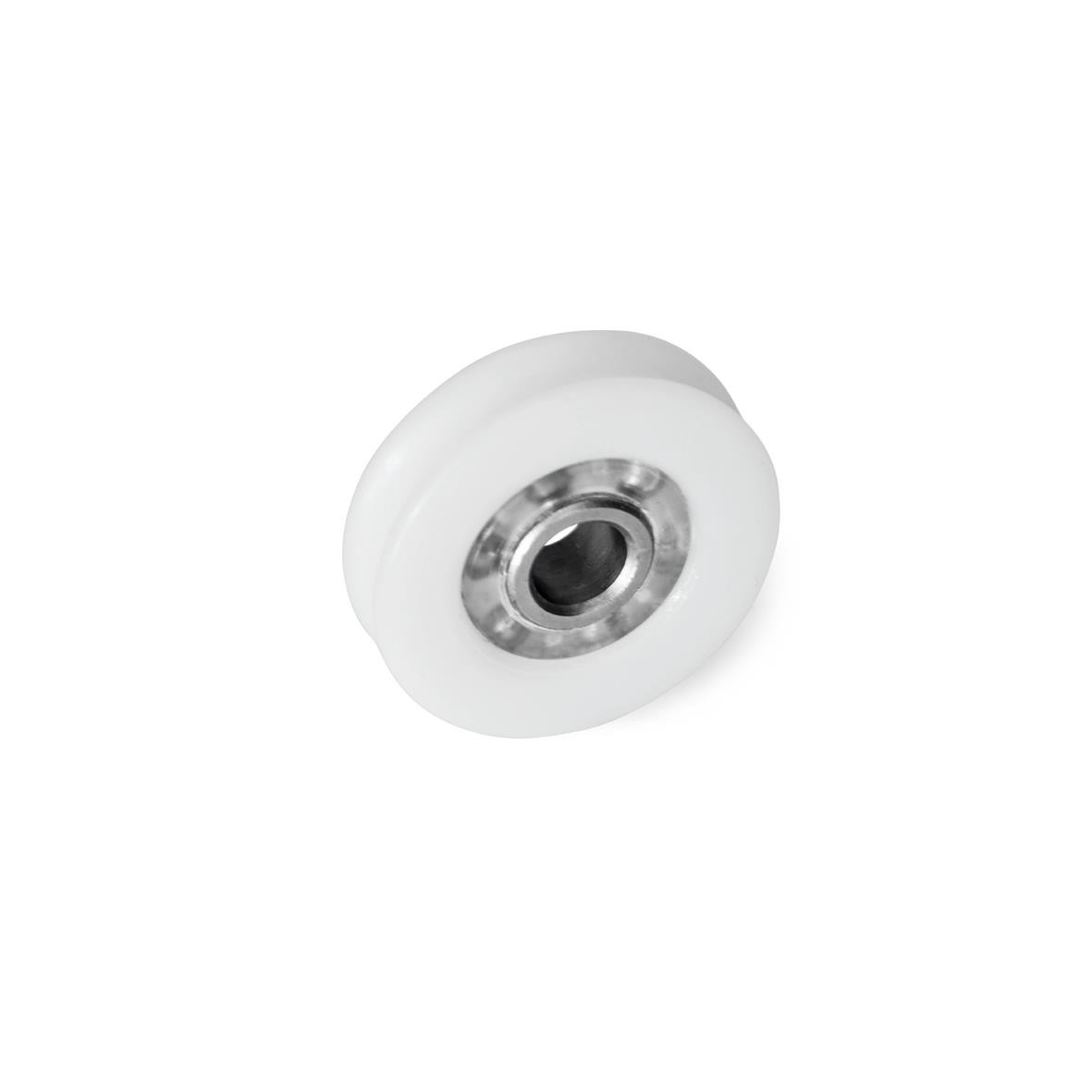

| Manufacturer designation (German) | Laufrollen, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83022000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
