Technical data (manufacturer information, German terms)
| h1 | 43 |
|---|
| Form | U - für Loslager-Laufschienen |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| b1 | 32,2 |
|---|
| b2 | 15 |
|---|
| d für Zylinderschraube DIN 912 | M 4 |
|---|
| h2 | 40 |
|---|
| l1 | 7 |
|---|
| l2 | 5 |
|---|
| l3 max. | 3,5 |
|---|
| m1 | 12 |
|---|
| m2 | 7,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,016 kg |
|---|

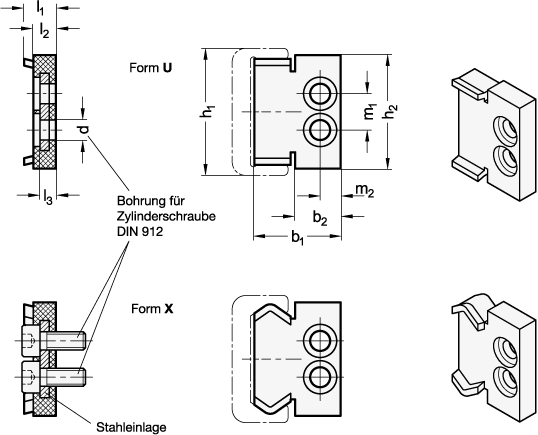

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2428 |
|---|
| Order designation | GN 2428-43-U |
|---|
| EAN | 4045525960640 |
|---|
| Manufacturer designation (German) | Abstreifer |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23309209 |
|---|
