Technical data (manufacturer information, German terms)
| h1 Laufschienen GN 2492 | 45 |
|---|
| Form | E - Exzenterlaufrolle mit exzentrischem Lagerzapfen |
|---|
| Kennzeichen | X - für Festlagerlaufschiene |
|---|
| Werkstoff Dichtscheibe | 2RS - Gummi (NBR), blau |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| b1 | 11 |
|---|
| b2 | 15,5 |
|---|
| d1 | 35,1 |
|---|
| d3 | 12 |
|---|
| d4 | M 6 |
|---|
| l1 | 4,3 |
|---|
| l2 | 6,8 |
|---|
| l3 max. | 1 |
|---|
| r | 7 |
|---|
| sw | 15 |
|---|
| t | 12 |
|---|
| x | 0,8 |
|---|
| FR pro Laufrolle in N | 1980 |
|---|
| FA pro Laufrolle in N | 500 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,060 kg |
|---|

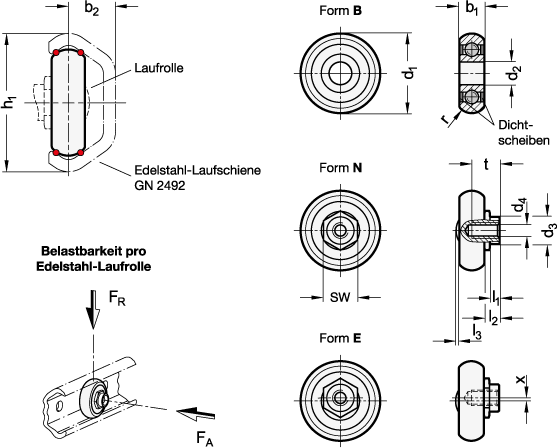

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2496 |
|---|
| Order designation | GN 2496-45-E-2RS-X |
|---|
| EAN | 4045525728899 |
|---|
| Manufacturer designation (German) | Laufrollen, für Laufschienen GN 2492, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
