Technical data (manufacturer information, German terms)
| Höhe h1 | 35 |
|---|
| Länge der Schiene l1 | 610 |
|---|
| Form | DG - Läuferleiste 1 x mit Senkbohrung und 1 x mit Gewinde |
|---|
| Werkstoff | VS - Vergütungsstahl |
|---|
| Länge l11 | 370 - 406 |
|---|
| l12 | 450 - 494 |
|---|
| l13 | 530 - 558 |
|---|
| l14 | 610 - 646 |
|---|
| b1 | 33 |
|---|
| b2 | 34 |
|---|
| d1 | M 6 |
|---|
| d2 | 6,5 |
|---|
| s | 3,5 |
|---|
| t | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 3,720 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2408 |
|---|
| Order designation | GN 2408-35-610-DG |
|---|
| EAN | 4045525958319 |
|---|

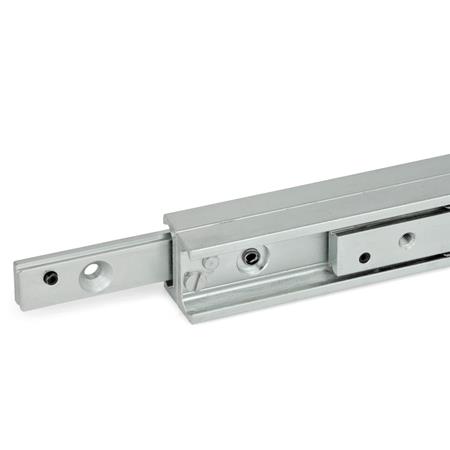

| Manufacturer designation (German) | Teleskop-Linearkugellager |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23300601 |
|---|
