Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| d1 - d2 | G 18 - G18 |
|---|
| Kennziffer | 2 - mit 2 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| d3 Befestigungsschrauben am Mitnehmer | M 3 |
|---|
| k Klemmlänge | 25 |
|---|
| l1 | 64 |
|---|
| m | 20 |
|---|
| z Schraubstellen | M6-20 |
|---|
| Zubehör empf. Klemmhebel für z GN 911.3 l2 | 45 |
|---|
| x6 | 63 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,148 kg |
|---|

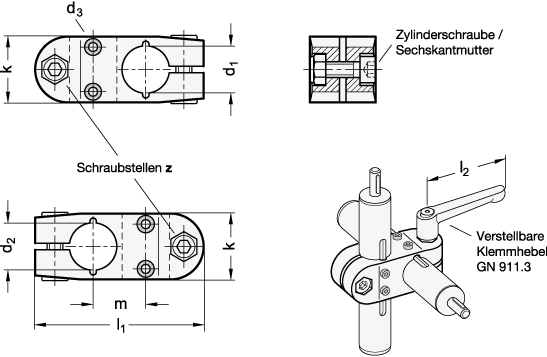

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 131.2 |
|---|
| Order designation | GN 131.2-G18-G18-2-NI |
|---|
| EAN | 4045525656680 |
|---|
| Manufacturer designation (German) | Kreuz-Verfahrschlitten, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73072210 |
|---|
| eCl@ss 5.1.4 | 23309290 |
|---|
