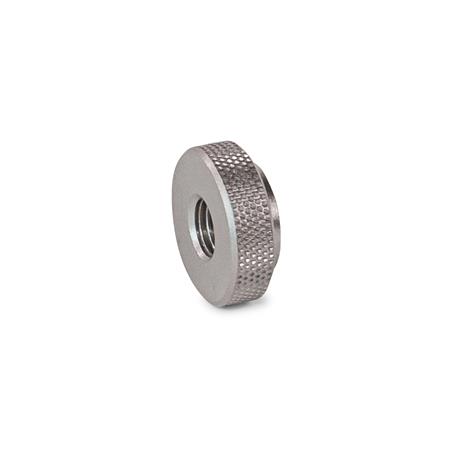

Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827 – Ganter GN 827.1-M10X1-NG

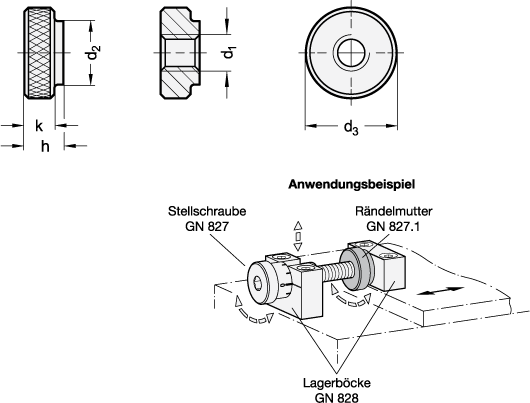

Dimensional drawing Ganter GN 827.1-M10X1-NG
Preview: Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827 – Ganter GN 827.1-M10X1-NG
Preview: Dimensional drawing Ganter GN 827.1-M10X1-NG
Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827
Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827 – Ganter GN 827.1-M10X1-NG
Dimensional drawing Ganter GN 827.1-M10X1-NG
Mobile Preview: Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827 – Ganter GN 827.1-M10X1-NG
Mobile Preview: Dimensional drawing Ganter GN 827.1-M10X1-NG

Rändelmuttern GN 827.1, Edelstahl, für Stellschrauben GN 827

Product No.:
827.1-M10X1-NG
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNG - Edelstahl
    d1M 10 x 1
    d216
    d324
    h9
    k7
    RoHSJa
    Gewicht0,023 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 827.1
    Order designationGN 827.1-M10X1-NG
    EAN4045525711624
    Manufacturer designation (German)Rändelmuttern, für Stellschrauben GN 827, Edelstahl
    Order unitPiece
    Customs tariff number73181639
    eCl@ss 5.1.423110690
