Technical data (manufacturer information, German terms)
| Gewinde d1 | M 8 |
|---|
| l1 | 25 |
|---|
| Magnetwerkstoff | ND - NdFeB |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 13 |
|---|
| e ≈ | 14,4 |
|---|
| k1 | 5,3 |
|---|
| k2 | 4 |
|---|
| l2 max. | 3,7 |
|---|
| s | 13 |
|---|
| Nennhaftkräfte in N | 50 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,015 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 251.6 |
|---|
| Order designation | GN 251.6-M8-25-ND |
|---|
| EAN | 4045525850996 |
|---|

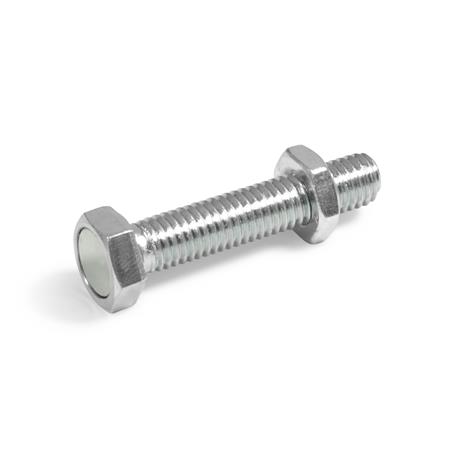

| Manufacturer designation (German) | Anschlagschrauben mit Haltemagnet |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181542 |
|---|
| eCl@ss 5.1.4 | 23110110 |
|---|
