Technical data (manufacturer information, German terms)
| Magnetwerkstoff | HF - Hartferrit |
|---|
| Länge l1 | 70 |
|---|
| Gewinde d1 | M 5 |
|---|
| Farbe | SW - schwarz |
|---|
| Form | B - mit 2 Innengewinden |
|---|
| Durchmesser b1 | 50 |
|---|
| Durchmesser b2 | 43,5 |
|---|
| Durchmesser d2 | 12 |
|---|
| h1 | 13 |
|---|
| h2 | 8 |
|---|
| h3 | 6 |
|---|
| l2 | 61,5 |
|---|
| l3 | 20,5 |
|---|
| m | 27,5 |
|---|
| Form B | 45 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,125 kg |
|---|

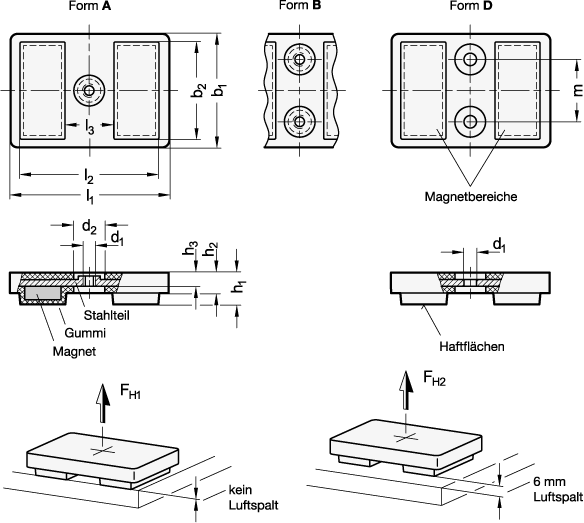

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 57.2 |
|---|
| Order designation | GN 57.2-HF-70-M5-B-SW |
|---|
| EAN | 4045525666214 |
|---|
| Manufacturer designation (German) | Haltemagnete, Rechteckform, mit Gummiummantelung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 85051910 |
|---|
| eCl@ss 5.1.4 | 21020801 |
|---|
