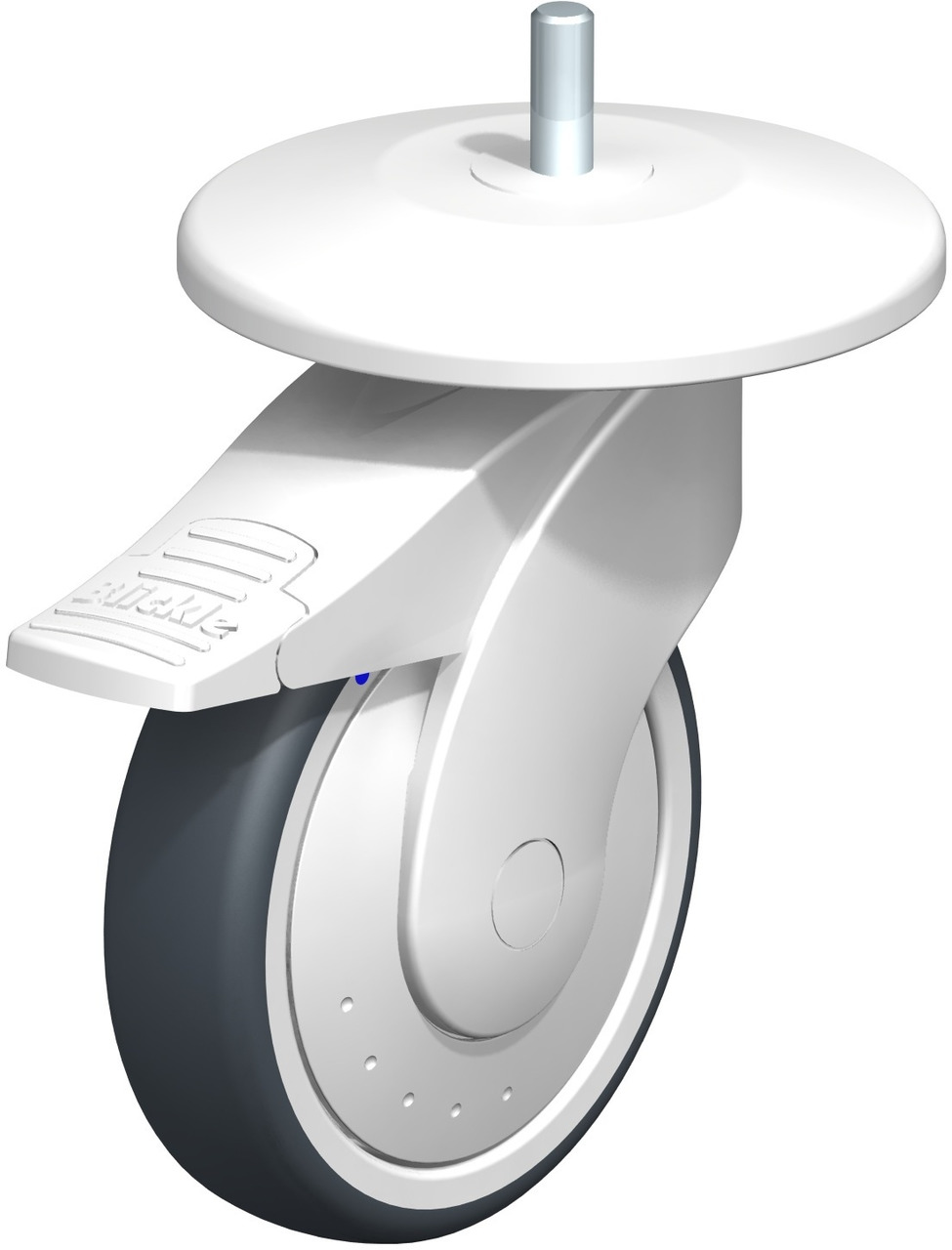

Blickle synthetic swivel castor WAVE, corrosion-resistant, colour grey white, with bumpers, with brake system 'stop-fix', wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large
Bracket: LWKX series
- high-quality nylon 6, impact resistant
- moulded corrosion-resistant grooved ball bearing in the swivel head sealed on both sides
- bolt hole
- colour grey white RAL 9002
- all parts including axle material are corrosion-resistant
- modern, appealing design
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour grey white RAL 9002
Other features
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces
Technical data
| Product type | swivel castor with brake |
|---|
| Wheel Ø | 125 mm |
|---|
| Wheel width | 32 mm |
|---|
| Bearing type | ball bearing (C) |
|---|
| Load capacity (3 km/h) | 110 kg |
|---|
| Overall height | 160 mm |
|---|
| Offset | 40 mm |
|---|
| Top plate dimensions | 55 mm |
|---|
| Bolt hole Ø | 11 mm |
|---|
| Fitting type | bolt hole |
|---|
| Weight | 0.7 kg |
|---|
| Tread material | Rubber |
|---|
| Wheel centre material | high-quality polypropylene |
|---|
| Tread colour | grey |
|---|
| Wheel centre colour | grey white RAL 9002 |
|---|
| Temperature resistance | −20 to +60 °C |
|---|
| Tread hardness | 85 Shore A |
|---|
| Properties | non-marking, corrosion-resistant |
|---|
Article data
| Manufacturer | Blickle (Blickle Räder+Rollen GmbH u. Co. KG) |
|---|
| Type | LWKX-TPA 126XKF-11-FI-AMWX125 |
|---|
| Blickle part number | 849409 |
|---|
| EAN | 4047526151447 |
|---|
| Order unit | piece |
|---|
| Customs tariff number | 87169090 |
|---|
| Country of origin | DE |
|---|
| eCl@ss 9.1 | 23370501 |
|---|
Data according to the manufacturer.
