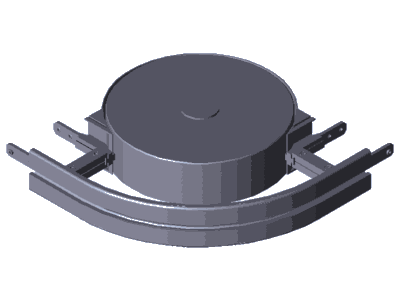

Curve wheel AL VFplus 120 90°
- Ball bearing made of non-rusting stainless steel (1.4125), with seal on both sides and FDA-compliant grease filling
- Surfaces in contact with chain made of FDA-compliant material
- No interfering contours above chain plate height
- Can be used horizontally and vertically (for wedge conveyors)
Technical data
| Property | Value |
|---|
| Deflection angle [α] [°] | 90 |
| Dimension A [mm] [mm] | 240.5 |
| Size [b] [mm] | 120 |
| Dimension b [mm] | 379.5 |
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Modification | Additional versions are available on request from our modification department. (COS@boschrexroth.de) |
| Material information | Ball bearing: Non-rusting steel 1.4301/FDA
Chain wheel: PA, white
Housing: Diecast aluminum |
| Actual chain length [m] | 2x 0,48 |
| Effective sliding rail length [m] | 2x 0,63 |
| Weight [kg] | 3.5 |
Item data
| Property | Value |
|---|
| Manufacturer | Bosch Rexroth |
| Part number | 3 842 547 058 |
| Designation | CAM WHEEL 120+ AL 90° |
| Product area | Conveyor and transfer systems › VarioFlow plus chain conveyor system › VarioFlow plus aluminum system › AL curves › Curves AL, horizontal |
Manufacturer data sheet and CAD data available on request.
