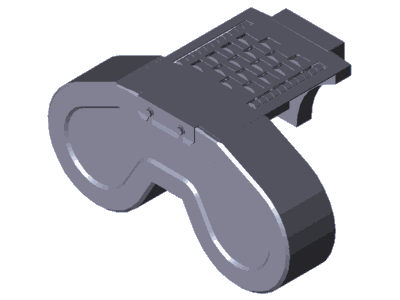

Connection kit active bridge VFplus 90
- The active roller bridge is used as a transfer unit between the basic unit and return unit or with the connection drive to bridge the conveyor trench.
- The active roller bridge is driven by a transmission (on the drive or return unit side)
- Only for flat conveyor chain and static friction chain
- Height adjustment: Approx. 2 mm
- Additional versions (e.g. machine variants at the section end) available on request
- Suitable for conveyed materials from approx. 100 mm in length (depending on the speed, position of the center of gravity, product friction, etc.)
- Freely selectable mounting position (L/R)
- Not permitted for wet operation or rough ambient conditions
- Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard
- Can be retrofitted into a standard configuration at any time
- Accumulation not permitted
Technical data
| Property | Value |
|---|
| Dimension [B] [mm] | 199 |
| Size [b] [mm] | 90 |
| Scope of delivery | Incl. fastening material
Transmission and protective cover |
| Material information | Non-rusting steel 1.4301, PA, POM, ABS, PUR |
| Weight [kg] | 4.66 |
Item data
| Property | Value |
|---|
| Manufacturer | Bosch Rexroth |
| Part number | 3 842 555 821 |
| Designation | CONNECTING KIT 90+ BRIDGE ACT T |
| Product area | Conveyor and transfer systems › VarioFlow plus chain conveyor system › VarioFlow plus aluminum system › Drive and return components AL › Drive and return unit AL, bridges and connection shafts AL |
Manufacturer data sheet and CAD data available on request.
