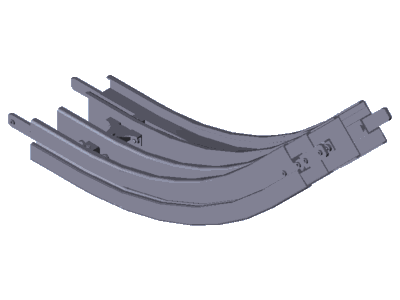

Vertical curve AL VFplus 160 45°
- The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa
Technical data
| Property | Value |
|---|
| Deflection angle [α] [°] | 45 |
| Dimension A [mm] [mm] | 548.7 |
| Size [b] [mm] | 160 |
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Notice | Effective sliding rail length with support profile |
| Material information | Cross connector: Diecast aluminum
Profile connector: Steel, galvanized
Profile: Aluminum, anodized
Support profile from size 160: Non-rusting steel 1.4301 |
| Actual chain length [m] | 2x 0,59 |
| Effective sliding rail length [m] | 8x 0,59 |
| Required accessories | Slide rail: Length calculation |
| Weight [kg] | 2.97 |
Item data
| Property | Value |
|---|
| Manufacturer | Bosch Rexroth |
| Part number | 3 842 547 102 |
| Designation | CURVE 160+ VERT AL 45°R500 |
| Product area | Conveyor and transfer systems › VarioFlow plus chain conveyor system › VarioFlow plus aluminum system › AL curves › Curves AL, vertical |
Manufacturer data sheet and CAD data available on request.
