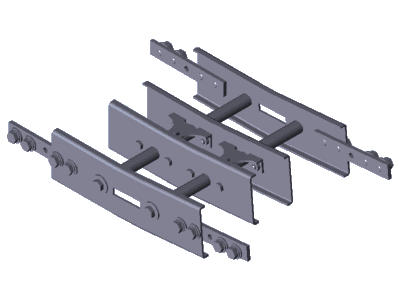

Vertical curve STS VFplus 240 5°
Technical data
| Property | Value |
|---|
| Deflection angle [α] [°] | 5 |
| Dimension A [mm] [mm] | 246.2 |
| Size [b] [mm] | 240 |
| Scope of delivery | Incl. fastening material for mounting to STS section profiles |
| Notice | Effective sliding rail length with support profile |
| Material information | Connector: Non-rusting steel 1.4301
Profile: Non-rusting steel 1.4301
Support profile from size 160: Non-rusting steel 1.4301 |
| Actual chain length [m] | 2x 0,24 |
| Effective sliding rail length [m] | 8x 0,24 |
| Required accessories | Slide rail: Length calculation |
| Weight [kg] | 2.61 |
Item data
| Property | Value |
|---|
| Manufacturer | Bosch Rexroth |
| Part number | 3 842 547 151 |
| Designation | CURVE 240+ VERT STS 5°R500 |
| Product area | Conveyor and transfer systems › VarioFlow plus chain conveyor system › VarioFlow plus stainless steel system › Curves STS › Curves STS, vertical |
Manufacturer data sheet and CAD data available on request.
