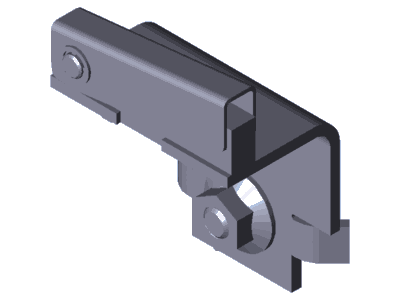

Bosch Rexroth Return Stop 3842553090
Bosch Rexroth Return Stop 3842553090 – view 2
Bosch Rexroth Return Stop 3842553090 – view 3
Preview: Bosch Rexroth Return Stop 3842553090
Preview: Bosch Rexroth Return Stop 3842553090 – view 2
Preview: Bosch Rexroth Return Stop 3842553090 – view 3
RETURN STOP VF WT
Bosch Rexroth Return Stop 3842553090
Bosch Rexroth Return Stop 3842553090 – view 2
Bosch Rexroth Return Stop 3842553090 – view 3
Mobile Preview: Bosch Rexroth Return Stop 3842553090
Mobile Preview: Bosch Rexroth Return Stop 3842553090 – view 2
Mobile Preview: Bosch Rexroth Return Stop 3842553090 – view 3

RETURN STOP VF WT

Product No.:
3842553090
ca. 5-10 days ca. 5-10 days (abroad may vary)
manufacturer:
Bosch Rexroth
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Return Stop

    • The return stop prevents the VarioFlow plus workpiece pallet from rebounding from the stop gate or prevents a backward movement of the workpiece pallet when the chain is turned off and released
    • Additional WT load max. 8 kg
    • The return stop is attached behind the WT stop surface.
    • Can be attached both left and right on the section profile
    • Simple and low-cost construction
    • Non-rotating
    • Also suitable for retrofitting without disrupting the lateral guide

    Technical data

    PropertyValue
    Scope of deliveryIncl. fastening material
    Material informationNon-rusting steel 1.4301
    PA
    Steel, galvanized
    Weight [kg]0.17

    Item data

    PropertyValue
    ManufacturerBosch Rexroth
    Part number3 842 553 090
    DesignationRETURN STOP VF WT
    Product areaConveyor and transfer systems › VarioFlow plus chain conveyor system › Workpiece pallet system › Transportation control and positioning › Stop gate and return stop

    Manufacturer data sheet and CAD data available on request.
