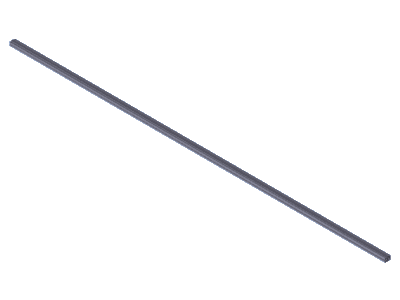

STRUT PROFILE 60X90 L=6170 MM

Name: STRUT PROFILE 60X90 L=6170 MM
Brand: Bosch Rexroth
SKU: 3842557217

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Strut profile 60x90

Property	Value
Condition on delivery	Single rod in standard length
Cross-section	60x90
Modular dimension [mm]	60
Profile slot	10
Dimensions	60x90
Open slots	6
Profile type	Standard
Color	Natural
Mass [m] [kg]	7
Area moment of inertia in x-direction [lx] [cm⁴]	214.2
Area moment of inertia in y-direction [ly] [cm⁴]	90.5
Profile surface [A] [cm²]	25.8
Moment of resistance in the x-direction [Wx] [cm³]	47.6
Moment of resistance in the y-direction [Wy] [cm³]	30.2
Torsional moment of inertia [It] [cm⁴]	45.8
Moment of torsion resistance [Wt] [cm³]	18
Length [L]	6070
Material	aluminum, anodized
Recommended accessories	Cover cap 60x90, black Cover cap 60x90, signal gray Cover cap with hole 60x90, black Cover cap with hole 60x90, signal gray
Weight [kg]	42.9

Property	Value
Manufacturer	Bosch Rexroth
Part number	3 842 557 217
Designation	STRUT PROFILE 60X90 L=6170 MM
Product area	Aluminum profile kit › Profiles and accessories › Strut profiles

Manufacturer data sheet and CAD data available on request.
