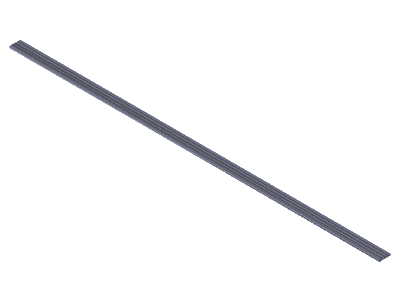

T-SLOT PLATE 22,5X180 6170 MM

Name: T-SLOT PLATE 22,5X180 6170 MM
Brand: Bosch Rexroth
SKU: 3842558306

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Strut profile 22.5x180

Property	Value
Condition on delivery	Single rod in standard length
Cross-section	22,5X180
Modular dimension [mm]	45
Profile slot	10
Dimensions	22,5x180
Profile type	Standard
Color	Natural
Mass [m] [kg]	5.8
Area moment of inertia in x-direction [lx] [cm⁴]	581
Area moment of inertia in y-direction [ly] [cm⁴]	11.8
Profile surface [A] [cm²]	21.6
Moment of resistance in the x-direction [Wx] [cm³]	66.8
Moment of resistance in the y-direction [Wy] [cm³]	14.7
Length [L]	6070
Material	aluminum, anodized
Recommended accessories	Cover cap 22.5x180, black Cover cap 22.5x180, signal gray
Weight [kg]	36

Property	Value
Manufacturer	Bosch Rexroth
Part number	3 842 558 306
Designation	T-SLOT PLATE 22,5X180 6170 MM
Product area	Aluminum profile kit › Profiles and accessories › Strut profiles

Manufacturer data sheet and CAD data available on request.
