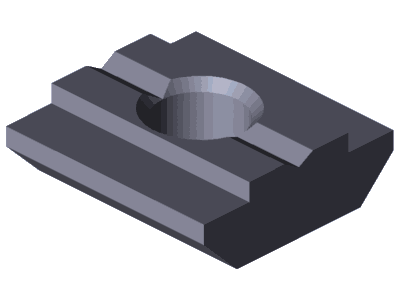

Sliding block groove 6 steel, galvanized, M5
- Sliding block for reliable absorption of high forces
- Spring assists with the assembly and positioning of the sliding block
- Profile finishing: not required
Technical data
| Property | Value |
|---|
| Profile slot | 6 |
| ESD | Yes |
| Thread size | M5 |
| Dimension h1 [mm] | 1 |
| Dimension h [mm] | 4 |
| Length [l] [mm] | 12 |
| Groove retention [Fmax] [N] | 3000 |
| Material | Steel, galvanized |
| Required accessories | Spring |
| Weight [kg] | 0.01 |
Item data
| Property | Value |
|---|
| Manufacturer | Bosch Rexroth |
| Part number | 3 842 542 693 |
| Designation | T-SLOT STONE 6 M5 ST |
| Product area | Aluminum profile kit › Connection elements › Fastening material › Sliding block, sliding block profile |
Manufacturer data sheet and CAD data available on request.
