Softline-Zylinderknöpfe GN 519.6, Kunststoff – Ganter GN 519.6-26-M8

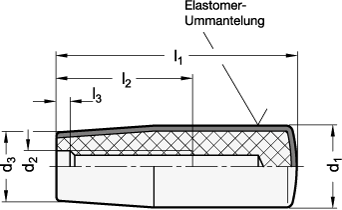

Dimensional drawing Ganter GN 519.6-26-M8
Preview: Softline-Zylinderknöpfe GN 519.6, Kunststoff – Ganter GN 519.6-26-M8
Preview: Dimensional drawing Ganter GN 519.6-26-M8
Softline-Zylinderknöpfe GN 519.6, Kunststoff
Softline-Zylinderknöpfe GN 519.6, Kunststoff – Ganter GN 519.6-26-M8
Dimensional drawing Ganter GN 519.6-26-M8
Mobile Preview: Softline-Zylinderknöpfe GN 519.6, Kunststoff – Ganter GN 519.6-26-M8
Mobile Preview: Dimensional drawing Ganter GN 519.6-26-M8

Softline-Zylinderknöpfe GN 519.6, Kunststoff

Product No.:
519.6-26-M8
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d126
    Gewinde d2M 8
    WerkstoffPP - Kunststoff
    d321
    l180
    l2 min.40
    l37
    RoHSJa
    Gewicht0,041 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 519.6
    Order designationGN 519.6-26-M8
    EAN4045525881518
    Manufacturer designation (German)Zylinderknöpfe, Kunststoff, Softline
    Order unitPiece
    Customs tariff number39269097
    eCl@ss 5.1.423010101
