Technical data (manufacturer information, German terms)
| Schalthebeldurchmesser d1 | 65 |
|---|
| d2 | 16 |
|---|
| Bohrungskennzeichen | V - mit Vierkant |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 12 |
|---|
| d4 | 30 |
|---|
| h1 | 20 |
|---|
| h2 | 5 |
|---|
| h3 ≈ | 60 |
|---|
| Länge l ≈ | 110 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,509 kg |
|---|

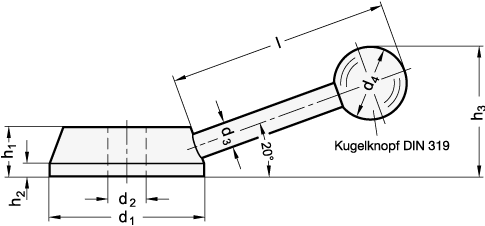

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 211 |
|---|
| Order designation | GN 211-65-V16 |
|---|
| EAN | 4045525084322 |
|---|
| Manufacturer designation (German) | Schalthebel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010502 |
|---|
