Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 33 |
|---|
| Gewindezapfen d3 | M 8 |
|---|
| Form | E - mit Gewindezapfen |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d4 | 18 |
|---|
| h | 29 |
|---|
| Länge l | 14 |
|---|
| t min. | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,024 kg |
|---|

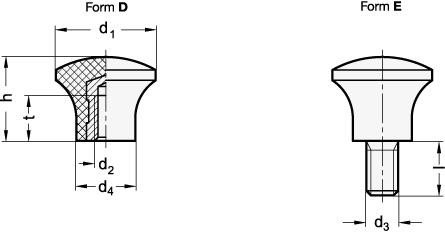

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 76 |
|---|
| Order designation | GN 76-33-M8-E |
|---|
| EAN | 4045525373075 |
|---|
| Manufacturer designation (German) | Pilzknöpfe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
