Technical data (manufacturer information, German terms)
| Werkstoff | KT - Kunststoff |
|---|
| Griffdurchmesser d1 | 25 |
|---|
| Gewinde | M 6 |
|---|
| d3 | 20 |
|---|
| l1 ≈ | 105,5 |
|---|
| l2 | 19,5 |
|---|
| l3 | 6 |
|---|
| l4 ≈ | 98,5 |
|---|
| l5 | 10,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,116 kg |
|---|

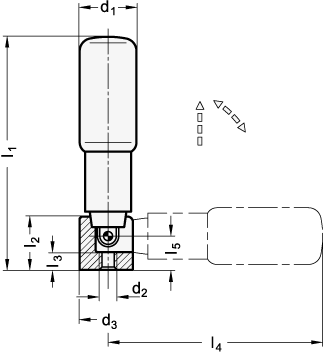

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 798.3 |
|---|
| Order designation | GN 798.3-KT-25 |
|---|
| EAN | 4045525375345 |
|---|
| Manufacturer designation (German) | Umleggriffe Kunststoff / Umlegmechanik Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
