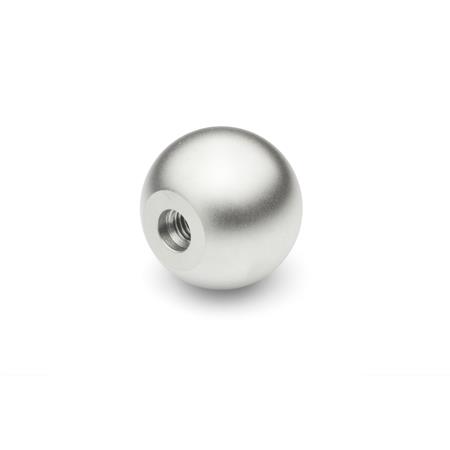

Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt – Ganter DIN 319-NI-16-M4-C
Dimensional drawing Ganter DIN 319-NI-16-M4-C
Preview: Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt – Ganter DIN 319-NI-16-M4-C
Preview: Dimensional drawing Ganter DIN 319-NI-16-M4-C
Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt
Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt – Ganter DIN 319-NI-16-M4-C
Dimensional drawing Ganter DIN 319-NI-16-M4-C
Mobile Preview: Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt – Ganter DIN 319-NI-16-M4-C
Mobile Preview: Dimensional drawing Ganter DIN 319-NI-16-M4-C

Kugelknöpfe DIN 319, Edelstahl, Matt Gestrahlt

Product No.:
319-NI-16-M4-C
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Kugeldurchmesser d116
    Gewinde d2M 4
    FormC - mit Gewinde
    d4 ≈8
    h ≈15
    t1 min.7
    t2 min.9
    RoHSJa
    Gewicht0,015 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partDIN 319
    Order designationDIN 319-NI-16-M4-C
    EAN4045525442610
    Manufacturer designation (German)Kugelknöpfe, Edelstahl
    Order unitPiece
    Customs tariff number73269098
    eCl@ss 5.1.423010101
