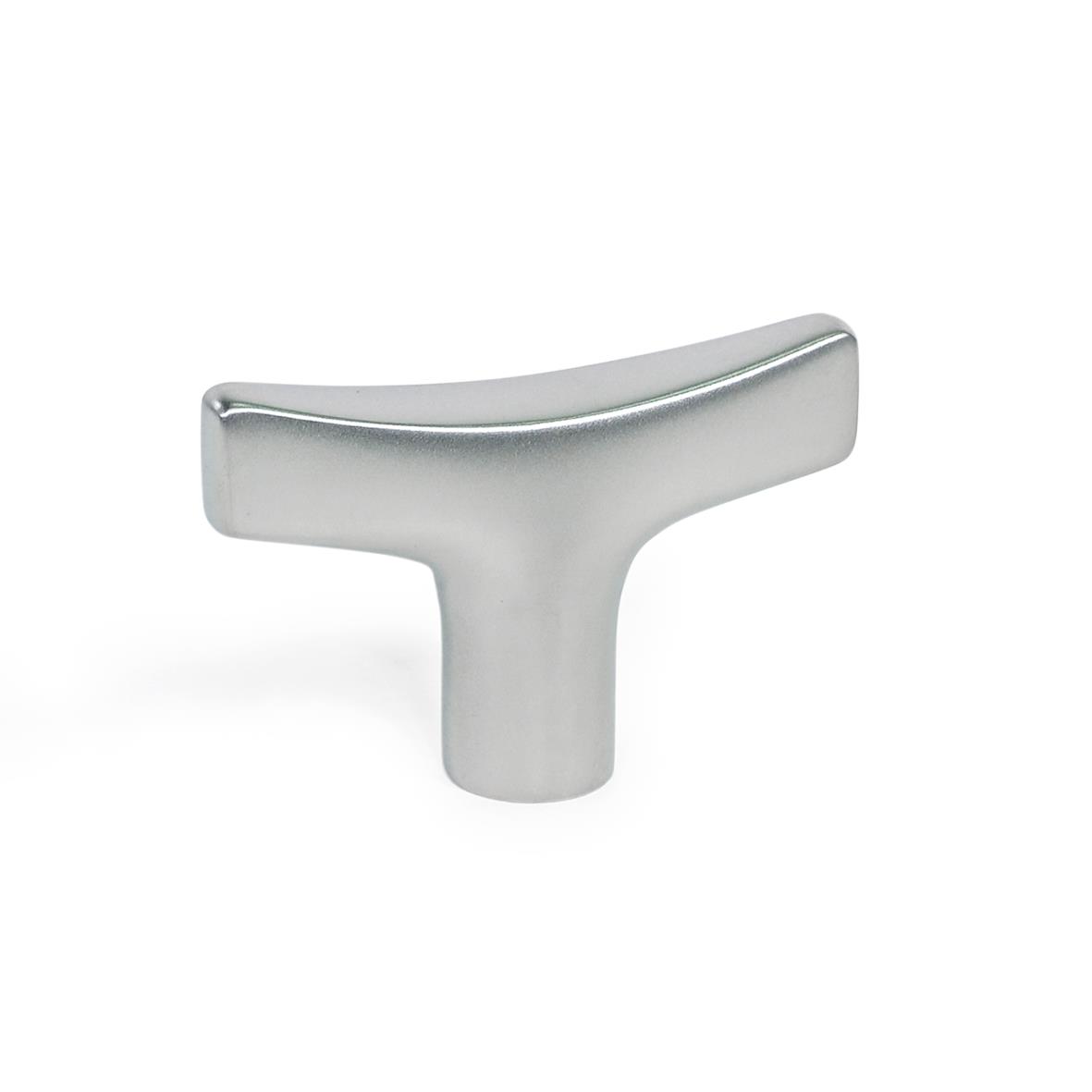

T-Griffe GN 5063, Edelstahl – Ganter GN 5063-63-B6-MT
Dimensional drawing Ganter GN 5063-63-B6-MT
Preview: T-Griffe GN 5063, Edelstahl – Ganter GN 5063-63-B6-MT
Preview: Dimensional drawing Ganter GN 5063-63-B6-MT
T-Griffe GN 5063, Edelstahl
T-Griffe GN 5063, Edelstahl – Ganter GN 5063-63-B6-MT
Dimensional drawing Ganter GN 5063-63-B6-MT
Mobile Preview: T-Griffe GN 5063, Edelstahl – Ganter GN 5063-63-B6-MT
Mobile Preview: Dimensional drawing Ganter GN 5063-63-B6-MT

T-Griffe GN 5063, Edelstahl

Product No.:
5063-63-B6-MT
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d163
    Bohrung d3B 6
    OberflächeMT - matt gestrahlt
    WerkstoffA4 - Edelstahl
    b7
    d416
    h141
    h2 ≈12
    t min.12
    RoHSJa
    Gewicht0,110 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5063
    Order designationGN 5063-63-B6-MT
    EAN4045525837676
    Manufacturer designation (German)T-Griffe, Edelstahl
    Order unitPiece
    Customs tariff number73181639
    eCl@ss 5.1.423010190
