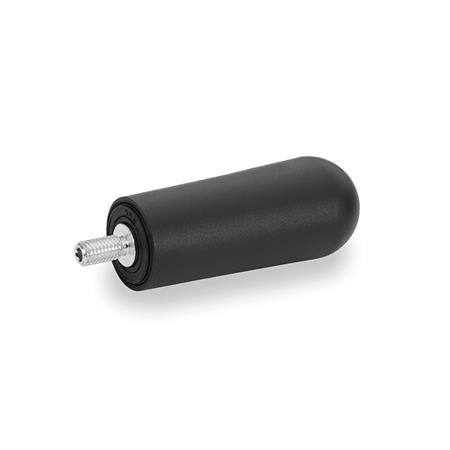

Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell – Ganter GN 798.6-KT-36-M8-SGA
Dimensional drawing Ganter GN 798.6-KT-36-M8-SGA
Preview: Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell – Ganter GN 798.6-KT-36-M8-SGA
Preview: Dimensional drawing Ganter GN 798.6-KT-36-M8-SGA
Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell
Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell – Ganter GN 798.6-KT-36-M8-SGA
Dimensional drawing Ganter GN 798.6-KT-36-M8-SGA
Mobile Preview: Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell – Ganter GN 798.6-KT-36-M8-SGA
Mobile Preview: Dimensional drawing Ganter GN 798.6-KT-36-M8-SGA

Drehbare Zylindergriffe GN 798.6, antibakteriell, antimikrobiell

Product No.:
798.6-KT-36-M8-SGA
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffKT - Kunststoff
    Griffdurchmesser d136
    Gewinde d2M 8
    OberflächeSGA - schwarzgrau, RAL 7021, matt
    d314
    d430
    l190
    l216
    l3 ≈1,5
    RoHSJa
    Gewicht0,136 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 798.6
    Order designationGN 798.6-KT-36-M8-SGA
    EAN4045525674813
    Manufacturer designation (German)Drehbare Zylindergriffe, Kunststoff, antimikrobiell
    Order unitPiece
    Customs tariff number84879090
    eCl@ss 5.1.423010190
