Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 21 |
|---|
| Gewinde d2 | M 5 |
|---|
| Werkstoff / Oberfläche | MDB - metalldetektierbar, blau, RAL 5001, matt |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| d3 | 12,5 |
|---|
| h1 | 18 |
|---|
| h2 | 10,5 |
|---|
| t min. | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,007 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 676 |
|---|
| Order designation | GN 676-21-M5-MDB |
|---|
| EAN | 4045525624085 |
|---|

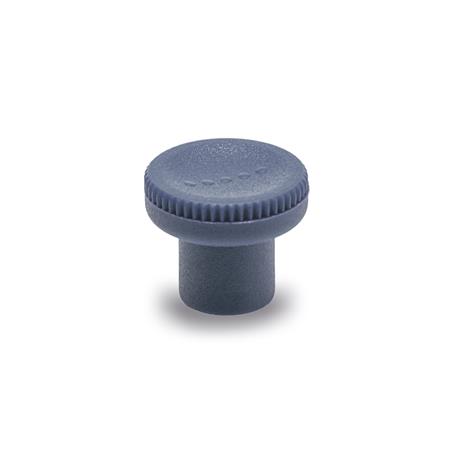

| Manufacturer designation (German) | Rändelknöpfe, Kunststoff, detektierbar, FDA-konform, Gewindebuchse Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
