Technical data (manufacturer information, German terms)
| Werkstoff | KU - Kunststoff |
|---|
| Griffdurchmesser d1 | 21 |
|---|
| Gewinde | M 5 |
|---|
| d3 | 16 |
|---|
| l1 ≈ | 67 |
|---|
| l2 | 15 |
|---|
| l3 | 5 |
|---|
| l4 ≈ | 62 |
|---|
| l5 | 9,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,058 kg |
|---|

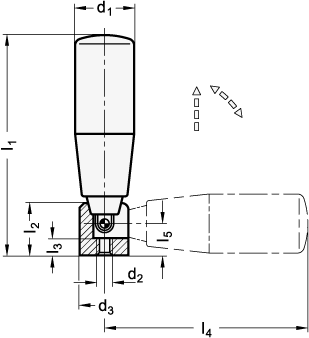

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 598.3 |
|---|
| Order designation | GN 598.3-KU-21 |
|---|
| EAN | 4045525299382 |
|---|
| Manufacturer designation (German) | Umleggriffe Kunststoff, Umlegmechanik Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
