Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 100 |
|---|
| Gewinde d2 | M 10 |
|---|
| Oberfläche | PL - poliert (Ra < 0,8 µm) |
|---|
| Werkstoff (Dichtring) | E - EPDM |
|---|
| Werkstoff | A4 - Edelstahl |
|---|
| b | 11 |
|---|
| d3 | 25 |
|---|
| d4 | 25,8 |
|---|
| d5 | 21 |
|---|
| h1 | 65 |
|---|
| h2 ≈ | 19 |
|---|
| t min. | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,429 kg |
|---|

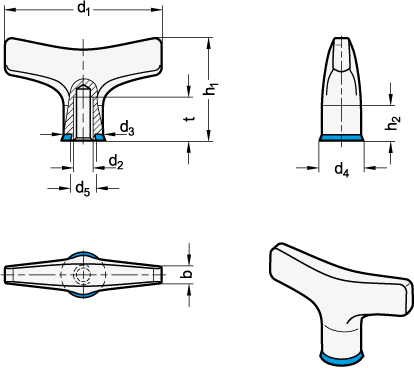

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5064 |
|---|
| Order designation | GN 5064-100-M10-PL-E |
|---|
| EAN | 4045525859876 |
|---|
| Manufacturer designation (German) | T-Griffe, Edelstahl, Hygienic Design |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
