Technical data (manufacturer information, German terms)
| Werkstoff | KU - Kunststoff |
|---|
| Kugeldurchmesser d1 | 25 |
|---|
| Gewinde d3 (KU) | M 6 |
|---|
| Form | E - mit Gewindebuchse |
|---|
| Farbe | RT - rot |
|---|
| d4 ≈ | 15 |
|---|
| h ≈ | 22,5 |
|---|
| t1 min. | 9 |
|---|
| t2 min. | 9 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,012 kg |
|---|

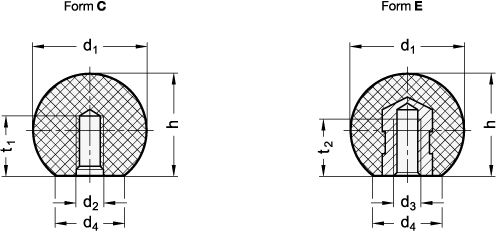

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 319 |
|---|
| Order designation | DIN 319-KU-25-M6-E-RT |
|---|
| EAN | 4045525173255 |
|---|
| Manufacturer designation (German) | Kugelknöpfe, Kunststoff, rot |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
