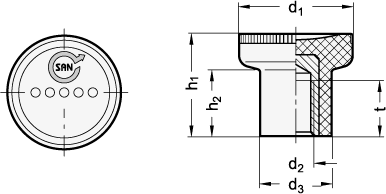

Dimensional drawing Ganter GN 676-21-M5-WSA
Preview: Rändelknöpfe GN 676, antibakteriell, antimikrobiell – Ganter GN 676-21-M5-WSA
Preview: Dimensional drawing Ganter GN 676-21-M5-WSA
Rändelknöpfe GN 676, antibakteriell, antimikrobiell
Rändelknöpfe GN 676, antibakteriell, antimikrobiell – Ganter GN 676-21-M5-WSA
Dimensional drawing Ganter GN 676-21-M5-WSA
Mobile Preview: Rändelknöpfe GN 676, antibakteriell, antimikrobiell – Ganter GN 676-21-M5-WSA
Mobile Preview: Dimensional drawing Ganter GN 676-21-M5-WSA

Rändelknöpfe GN 676, antibakteriell, antimikrobiell

Product No.:
676-21-M5-WSA
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d121
    Gewinde d2M 5
    OberflächeWSA - weiß, RAL 9016, matt
    WerkstoffKT - Kunststoff
    d312,5
    h118
    h210,5
    t min.10
    RoHSJa
    Gewicht0,007 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 676
    Order designationGN 676-21-M5-WSA
    EAN4045525624115
    Manufacturer designation (German)Rändelknöpfe, Kunststoff, antimikrobiell, Gewindbuchse Edelstahl
    Order unitPiece
    Customs tariff number84879090
    eCl@ss 5.1.423010101
