Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Innengewinde d2 | M 8 |
|---|
| Form | D - mit Innengewinde |
|---|
| Oberfläche | MT - matt gestrahlt |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d4 | 18 |
|---|
| h | 37 |
|---|
| Länge l | 16 |
|---|
| t min. | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,083 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 75.5 |
|---|
| Order designation | GN 75.5-32-M8-D-MT |
|---|
| EAN | 4045525886742 |
|---|

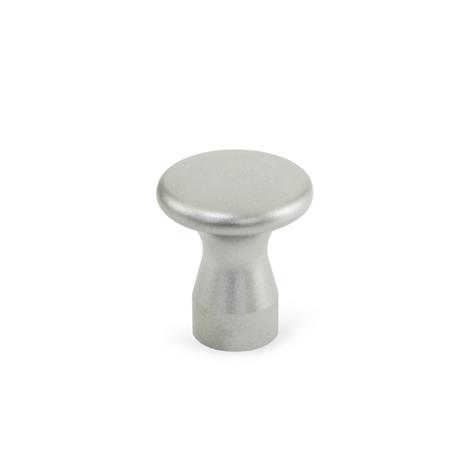

| Manufacturer designation (German) | Pilzknöpfe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010101 |
|---|
