Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 21 |
|---|
| Gewinde d2 | M 6 |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d3 | 15 |
|---|
| l1 | 72 |
|---|
| l2 | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,029 kg |
|---|

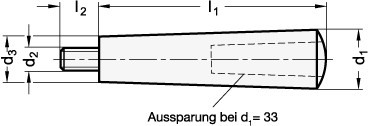

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 203 |
|---|
| Order designation | GN 203-21-M6 |
|---|
| EAN | 4045525079717 |
|---|
| Manufacturer designation (German) | Feste Konusgriffe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
