Feste Ballengriffe DIN 39, Kunststoff – Ganter DIN 39-ST-36-E

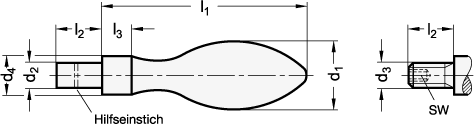

Dimensional drawing Ganter DIN 39-ST-36-E
Preview: Feste Ballengriffe DIN 39, Kunststoff – Ganter DIN 39-ST-36-E
Preview: Dimensional drawing Ganter DIN 39-ST-36-E
Feste Ballengriffe DIN 39, Kunststoff
Feste Ballengriffe DIN 39, Kunststoff – Ganter DIN 39-ST-36-E
Dimensional drawing Ganter DIN 39-ST-36-E
Mobile Preview: Feste Ballengriffe DIN 39, Kunststoff – Ganter DIN 39-ST-36-E
Mobile Preview: Dimensional drawing Ganter DIN 39-ST-36-E

Feste Ballengriffe DIN 39, Kunststoff

Product No.:
39-ST-36-E
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffST - Stahl
    Griffdurchmesser d136
    FormE - mit Gewindezapfen
    d2 Form D ST16
    GewindeM 16
    d422
    l1 ≈112
    l226
    l314
    sw Innensechskant8
    RoHSJa
    Gewicht0,400 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partDIN 39
    Order designationDIN 39-ST-36-E
    EAN4045525232983
    Manufacturer designation (German)Feste Ballengriffe Stahl, Kunststoff
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010190
