Technical data (manufacturer information, German terms)
| Länge l1 | 132 |
|---|
| Form | B - Montage von der Bedienseite |
|---|
| Farbe der Abdeckkappe | DGN - grün, RAL 6017, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d1 | M 8 |
|---|
| d2 | 8,5 |
|---|
| b | 23 |
|---|
| h1 | 52,5 |
|---|
| h2 | 13 |
|---|
| l2 | 173 |
|---|
| l3 | 113 |
|---|
| s | 9 |
|---|
| t1 | 12 |
|---|
| t2 | 8,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,044 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 365 |
|---|
| Order designation | GN 365-132-B-DGN |
|---|
| EAN | 4045525624351 |
|---|

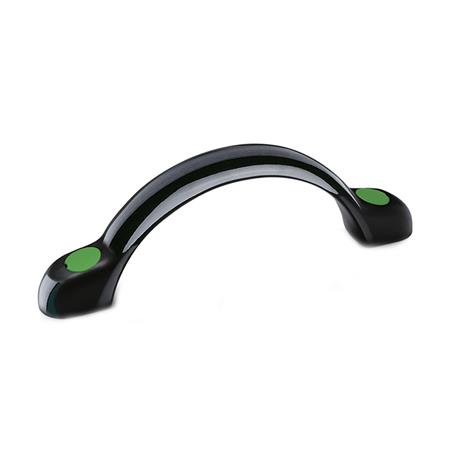

| Manufacturer designation (German) | Bügelgriffe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
