Technical data (manufacturer information, German terms)
| Länge l1 | 162 |
|---|
| Form | A - geschlossene Form |
|---|
| Oberfläche | SR - silber, RAL 9006, strukturmatt |
|---|
| Werkstoff | AL - Aluminium |
|---|
| a1 | 38 |
|---|
| a2 | 19 |
|---|
| b1 | 25 |
|---|
| b2 | 28 |
|---|
| h1 | 55 |
|---|
| h3 | 36 |
|---|
| l2 | 128 |
|---|
| l3 | 140 |
|---|
| t1 min. | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,250 kg |
|---|

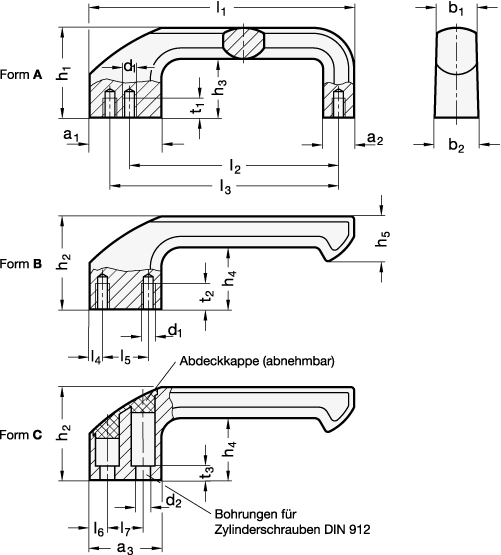

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 559 |
|---|
| Order designation | GN 559-162-A-SR |
|---|
| EAN | 4045525750579 |
|---|
| Manufacturer designation (German) | Handgriffe, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
