Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl-Feinguss |
|---|
| Länge l | 120 |
|---|
| Form | A - Befestigung von der Rückseite durch Gewinde |
|---|
| Kennziffer | 1 - Griffbügel 90° klappbar |
|---|
| Oberfläche | GS - matt gestrahlt |
|---|
| b1 | 124 |
|---|
| b2 | 20 |
|---|
| b3 | 106 |
|---|
| d1 | M 6 |
|---|
| d2 | 6,4 |
|---|
| h1 | 16 |
|---|
| h2 ≈ | 53 |
|---|
| h3 | 49 |
|---|
| h4 | 59 |
|---|
| m | 60 |
|---|
| t1 | 10 |
|---|
| t2 | 9,6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,266 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 425.9 |
|---|
| Order designation | GN 425.9-120-NI-A-1-GS |
|---|
| EAN | 4045525417847 |
|---|

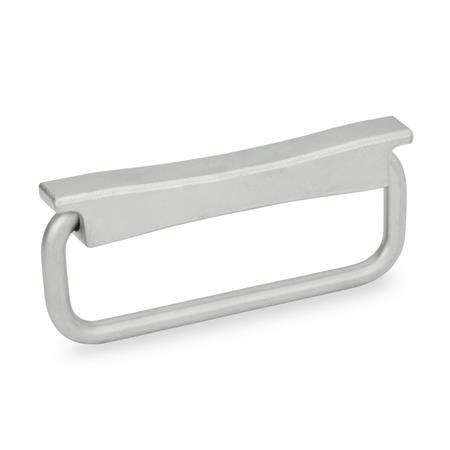

| Manufacturer designation (German) | Klappgriffe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
