Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 28 |
|---|
| Länge l1 | 400 |
|---|
| Farbe der Abdeckkappe | DOR - orange, RAL 2004, glänzend |
|---|
| Werkstoff | AL - Aluminium |
|---|
| a | 62,5 |
|---|
| b | 28 |
|---|
| d2 | 10,5 |
|---|
| h1 | 54 |
|---|
| h2 | 68 |
|---|
| h3 | 20 |
|---|
| l2 | 26 |
|---|
| l3 | 19,5 |
|---|
| l4 | 20,3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,302 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 767 |
|---|
| Order designation | GN 767-28-400-DOR |
|---|
| EAN | 4045525425668 |
|---|

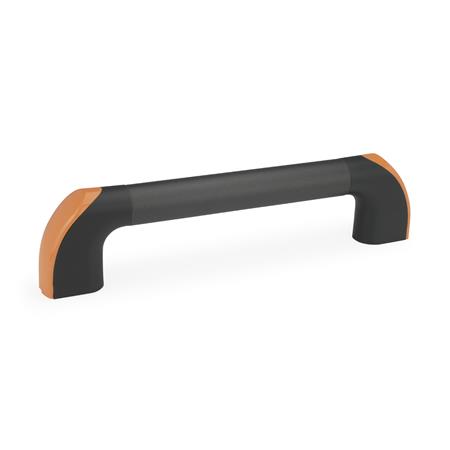

| Manufacturer designation (German) | Bügelgriffe, Aluminium / Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010103 |
|---|
