Technical data (manufacturer information, German terms)
| Länge l1 | 500 |
|---|
| Oberfläche | EL - eloxiert, naturfarben |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b1 | 36 |
|---|
| b2 | 13 |
|---|
| b3 | 8 |
|---|
| h1 | 34 |
|---|
| h2 | 24 |
|---|
| l2 Schraubbereich | 456 |
|---|
| l3 | 22 |
|---|
| t | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,390 kg |
|---|

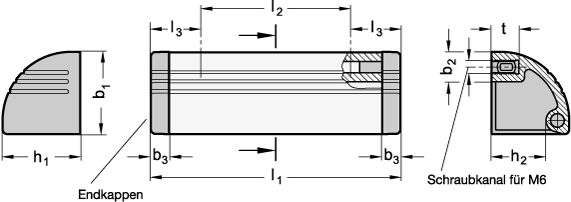

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 430 |
|---|
| Order designation | GN 430-500-EL |
|---|
| EAN | 4045525547049 |
|---|
| Manufacturer designation (German) | Griffleisten |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83024900 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
